BSP vs. NPT Fittings: Which Seal Do You Need?

From the late 1700s to the mid-1800s, the Industrial Revolution was a catalyst for establishing standards across industries. Traditional modes of production transitioned to new, largely mechanized methods of manufacturing, which required new regulations. As parts were fabricated and shipped across continents and oceans, a standard for screw threads became necessary to avoid incompatible parts.

In 1841, British engineer Joseph Whitworth created a thread design that was adopted by many British railroad companies and quickly became the standard for all screw threads in the United Kingdom. At the time, it was known as the British Standard Whitworth system.

Whitworth’s standard was widely used in the U.K. and U.S. through the 1860s, but was not universally accepted. In 1864, American engineer William Sellers presented his own thread design to put an end to widespread incompatibility between American manufacturers. Once Sellers’ threads were used for railroad work done under government contracts, his design became the U.S. standard for screw threads.

Today, we have Whitworth and Sellers to thank for the BSP and NPT pipe thread standards, respectively. The geographical origin of a piping system or parts still dictates the thread standard used; U.S.-based manufacturers standardize their threads to the NPT standards, while Britain and most of the rest of the world adhere to the BSP standards.

Threaded pipe connections provide tight seals for systems carrying liquids, gases and steam. Threads are found on the ends of pipes and on fittings like couplings, elbows and tees and can be made of steel, brass, bronze, cast iron and plastics like nylon and PVC.

Threaded connections are categorized as either straight (or parallel) or tapered, in which one end of the threaded connection is narrower than the other. Tapered pipe connections are favored in a wide variety of industries, including power plants, chemical, oil and gas, manufacturing and shipping.

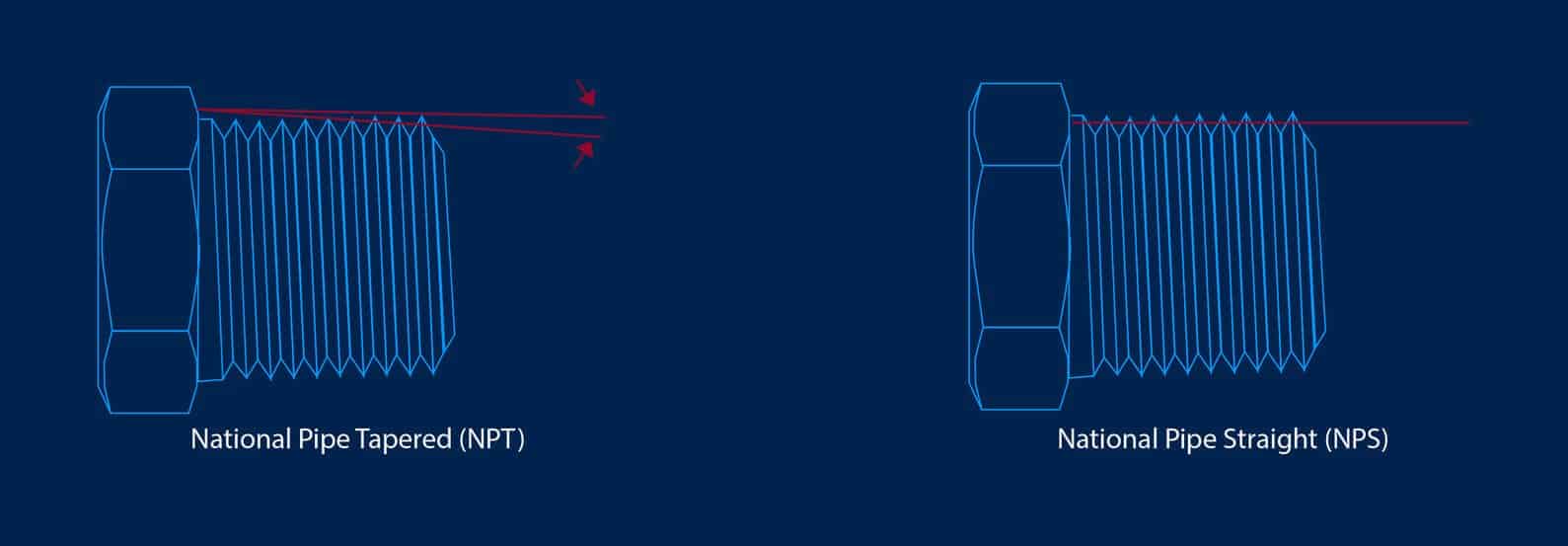

The NPT standards are divided into two categories: National Pipe Tapered (also NPT) and National Pipe Straight (NPS). Likewise, BSP standards are separated by tapered (BSPT) and parallel (BSPP).

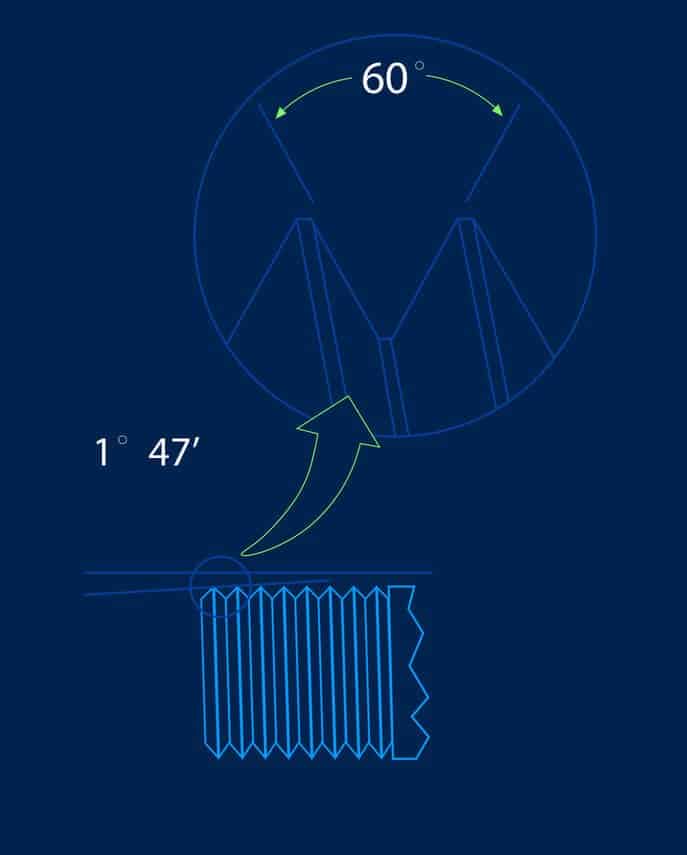

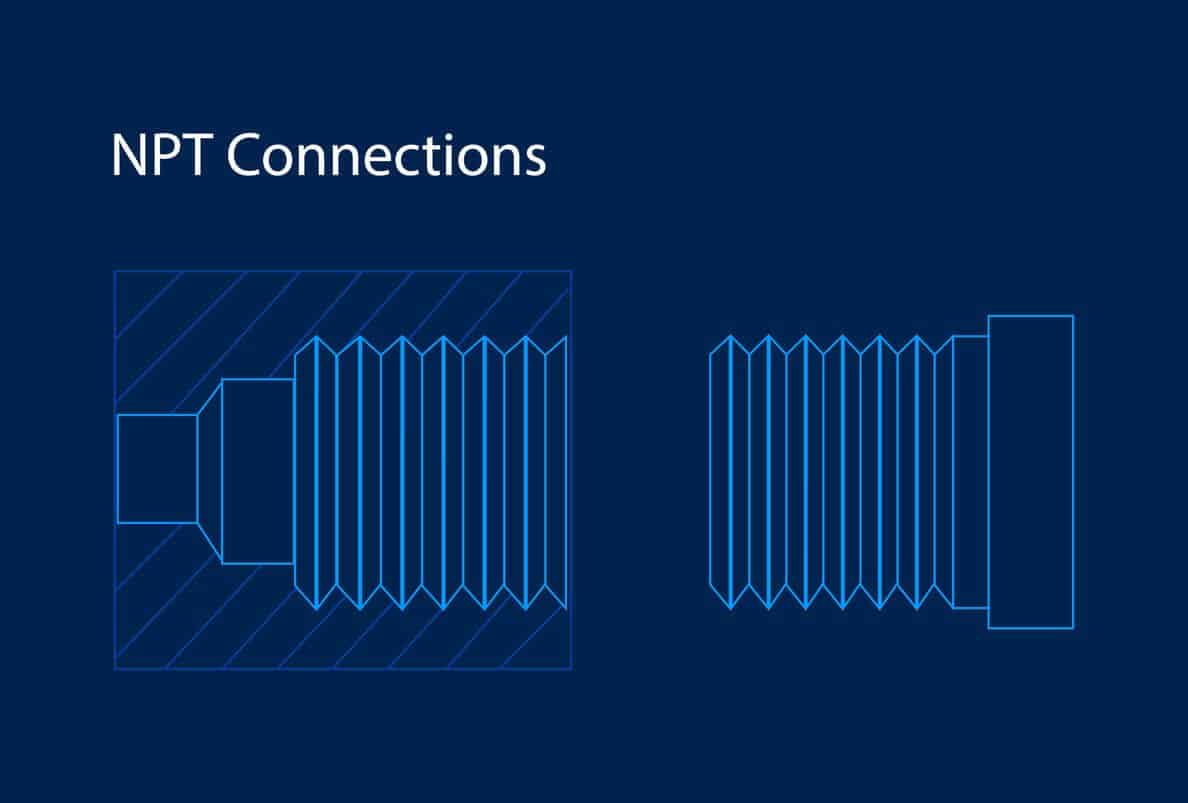

Per William Sellers’ original design, NPT threads are separated at a 60 degree angle and have flattened peaks and valleys. Connections can either be the same dimensions all the way along the thread (straight), or tapered toward the tip.

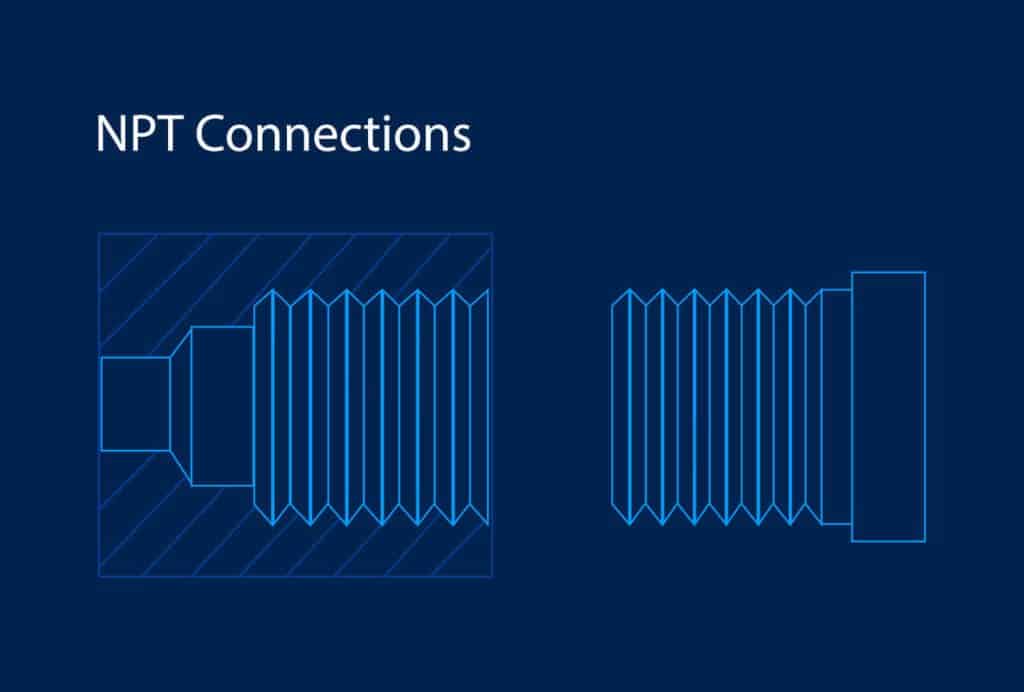

NPT tapered threads are the most common type of thread for pressure systems in the U.S. and Canada. Tapered threads are favored because they create a better seal, which is especially crucial in high pressure applications.

In tapered connections, the male fitting (MNPT) has a thread that locks into the female fitting (FNPT), then stretches the female fitting until the amount of force between the two can withstand pressure from media traveling through the pipes.

One challenge of the tapered thread design is that over-tightening or poor lubrication can lead to galling, or wear caused by friction between two surfaces. Therefore, it’s important to use lubrication like petroleum jelly or silicone spray.

Thread sealant is also needed to make connections leak-tight, but be careful not to overtighten the connection as this can cause media to leak around the sealant.

NPS, or National Pipe Straight threads, have the same characteristics as Sellers’ tapered threads except that they maintain the same diameter from the shoulder (base) to the tip. Straight pipe threads need an O-ring or a gasket to create a tight seal. Although it is possible to achieve an effective seal when mixing NPT tapered and NPS connections, the two are not considered compatible and may result in leaks from the pipe joint.

Though NPS threads do not provide as tight a seal as tapered threads, they are frequently used for connecting two surfaces of varying thicknesses. Straight thread connections allow a nut to move freely up and down the connection, whereas tapered threads lock tightly once they are in place.

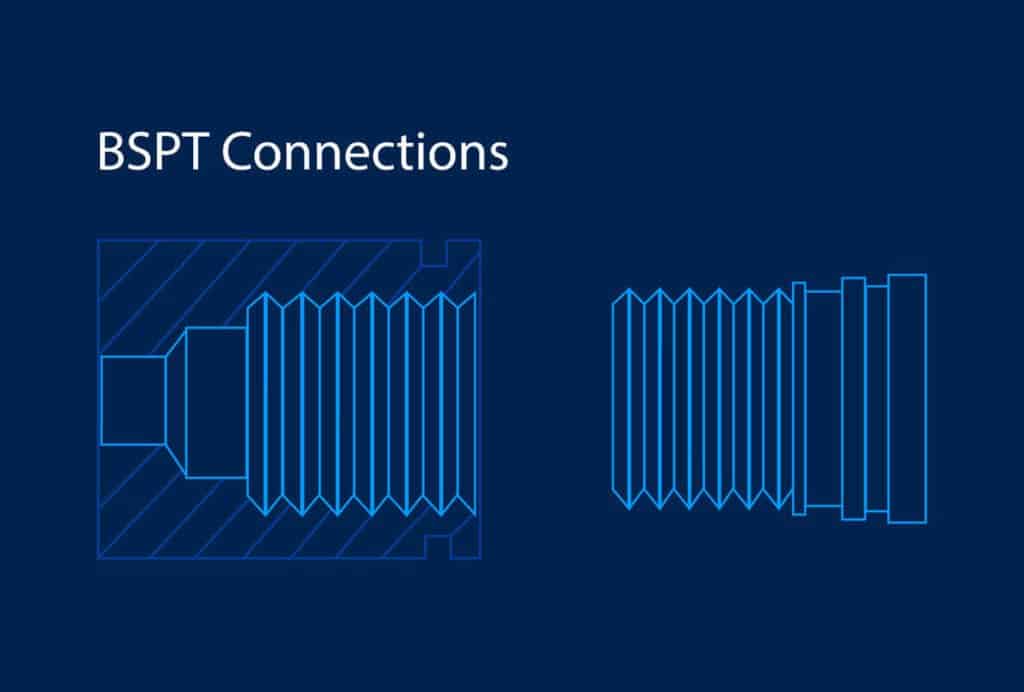

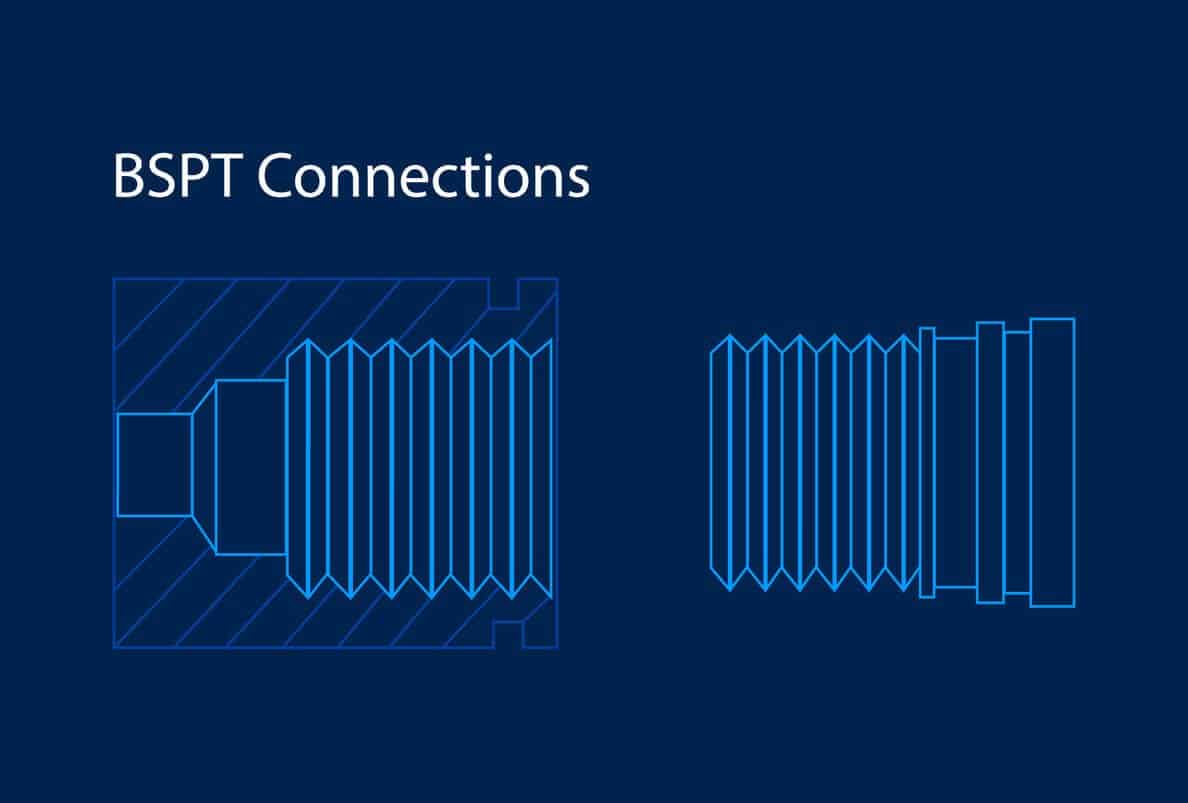

A British Standard Pipe Taper is the standard design for most of the world’s tapered threads. The diameter is widest at the shoulder of the connection and narrows toward the tip. Threads are pitched at a 55 degree angle with rounded peaks and valleys.

Unlike NPT tapered connections, both fittings in a BSPT connection do not have to be tapered. For example, a female fitting can be tapered while the male is straight. No matter the case, a thread sealant must be used in BSPT connections. An NPT tapered connection will sometimes fit into a BSPT fitting, or vice versa, but they will not create an effective seal.

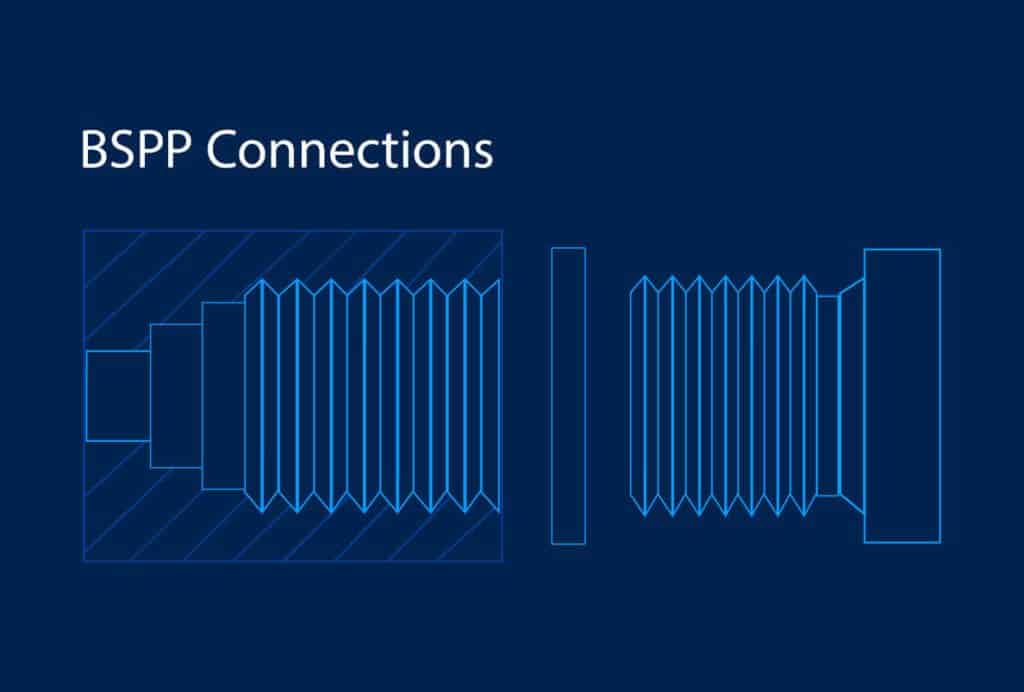

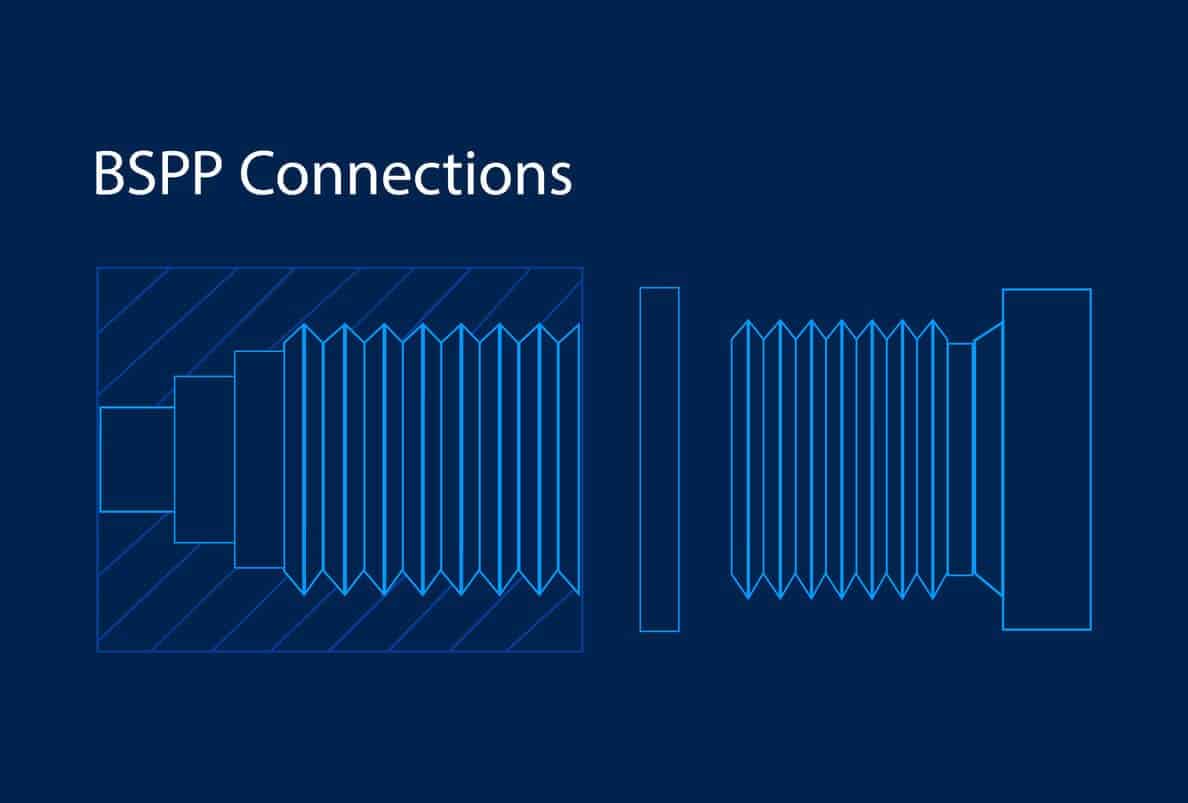

A British Standard Pipe Parallel is the straight equivalent of a BSPT thread. BSPP connections require a bonded seal ring, which is sandwiched in between the shoulder of the male fitting and the face (opening) of the female fitting.

Unlike other connections, a BSPP connection does not need thread sealant.

While the difference between straight and tapered threads is apparent to the naked eye, it is much more difficult (almost impossible) to tell the difference between an NPT or BSP fitting by sight.

If you’re unsure which kind of fitting you’re working with, you’ll need a pitch gauge to measure the angles of the threads. NPT fittings will have threads with a 60 degree spread while BSP threads will have a 55 degree spread.

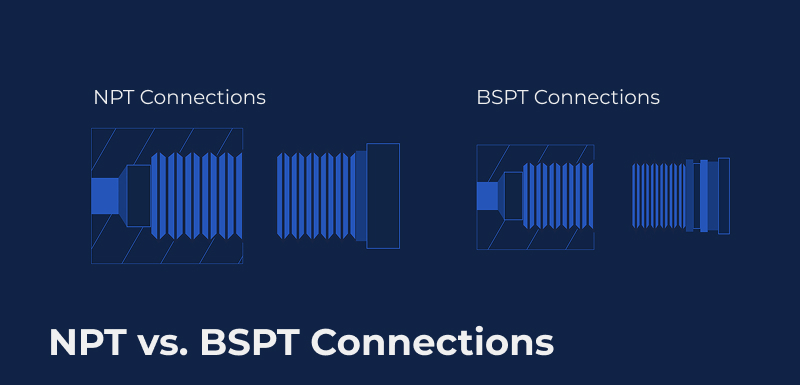

Use this chart to easily compare NPT and BSP.

	National Pipe Thread		British Standard Pipe
	Tapered (NPT)	Straight (NPS)	Tapered (BSPT)	Straight (BSPP)
Primary region(s) of use	North America (U.S. and Canada)		Europe, Asia, Africa, Australia, South America, Mexico
Thread angle	60 degrees		55 degrees
Peaks and valleys	Flat		Rounded
Required sealing method	Thread interference + sealant	O-ring or gasket	Sealant	Bonded seal
O-ring / gasket needed	No	Yes	No	Yes
Recommended for high pressure systems	Yes	No	Yes	No



Key Differences Between NPT & BSP Threads

NPT and BSP threads differ in several fundamental ways:

• Different governing standards. NPT is based on U.S. thread standards, while BSP follows British and international standards.
• Different thread geometry. The two systems use distinct thread profiles, which affects how the threads engage under torque.
• Different sealing approaches. NPT primarily seals through tapered thread interference, while BSP may rely on either taper sealing or bonded seals depending on the configuration.
• Different regional adoption. NPT is standard in the United States and Canada, whereas BSP is widely used across Europe, Asia and other international markets.
• Not mechanically interchangeable. Because of these structural differences, NPT and BSP threads cannot form a reliable seal when mixed.

Whether you’re working with NPT or BSP fittings, you’ll typically be able to tell the difference between tapered and straight connections. However, if a fitting is extremely small or has a subtle taper, you may not be able to tell which it is.

Follow these steps to determine your thread type:

1. Using a caliper, measure the major diameter (OD) at the first full thread following the tip of the connection.
2. Starting at the tip, count four threads in.
3. Measure the diameter at the fourth thread.
4. Measure the diameter at the last full thread before the shoulder of the connection.
5. If the diameter remains the same, it is a straight thread connection.
6. If the diameter increases from the first thread to the last thread (male) or decreases from the first to last thread (female), it is a tapered thread connection.

To determine the pitch of the connection (or the severity of its taper), count the number of threads in a 1” span. Once you have this number and your measurements, you’ll need a trade size chart to translate them — fitting sizes are categorized by their trade size, rather than their actual measurements. For example, a ½” NPT does not necessarily measure exactly ½” in diameter.

To find the trade size of a straight thread connection, simply measure its diameter at the fourth thread and consult a trade size chart.

NPT Thread Specifications

Trade Size	Threads per Inch	Pitch (in)	Pitch (mm)	Major Diameter (in)	Major Diameter (mm)
1/8	27	0.03704	0.94082	0.405	10.29
1/4	18	0.05556	1.41122	0.54	13.72
3/8	18	0.05556	1.41122	0.675	17.15
1/2	14	0.07143	1.81432	0.84	21.34
3/4	14	0.07143	1.81432	1.05	26.67
1	11½	0.08696	2.20878	1.315	33.4
1¼	11½	0.08696	2.20878	1.66	42.16
1½	11½	0.08695	2.20878	1.9	48.26
2	11½	0.08696	2.20878	2.375	60.33
2½	8	0.125	3.175	2.875	73.03
3	8	0.125	3.175	3.5	88.9
4	8	0.125	3.175	4.5	114.3

BSP Thread Specifications

Trade Size	Threads Per Inch	Pitch (in)	Pitch (mm)	Major Diameter (in)	Major Diameter (mm)	Minor Diameter (in)	Minor Diameter (mm)	Gage Length (in)	Gage Length (mm)
1/8	28	0.0357	0.907	0.383	9.728	0.3372	8.565	0.1563	3.97
1/4	19	0.0526	1.337	0.517	13.157	0.4506	11.445	0.2367	6.012
3/8	19	0.0526	1.337	0.656	16.662	0.5886	14.95	0.25	6.25
1/2	14	0.0714	1.814	0.825	20.955	0.7336	18.633	0.3214	8.164
3/4	14	0.0714	1.814	1.041	26.441	0.9496	24.12	0.375	9.525
1	11	0.0909	2.309	1.309	33.249	1.1926	30.292	0.4091	10.391
1¼	11	0.0909	2.309	1.65	41.91	1.5336	38.953	0.5	12.7
1½	11	0.0909	2.309	1.882	46.803	1.7656	44.846	0.5	12.7
2	11	0.0909	2.309	2.347	59.614	2.2306	56.657	0.625	15.875
2½	11	0.0909	2.309	2.96	75.184	2.8436	72.227	0.6875	17.463
3	11	0.0909	2.309	3.46	87.884	3.3436	84.927	0.8125	20.638
4	11	0.0909	2.309	4.45	113.03	4.3336	110.073	N/A	N/A

Have More Questions? Call Gemini Valve

Generally speaking, NPT is used for valve connections in the U.S. Occasionally NPT is used internationally, but BSPT governs many European threaded valves. For large volume orders, Gemini Valve will manufacture BSPT valves on a made-to-order basis, but NPT are by far the more popular and common choice.

If you have further questions about valve connections, or would like to request a quote, reach out today. A Gemini Valve team member will be happy to discuss connections for your next project.

What is the main difference between BSP and NPT threads?

The main difference between BSP and NPT threads is the thread angle and sealing method. NPT threads use a 60° angle and create a seal through tapered thread interference. BSP threads use a 55° angle and may be either tapered (BSPT) or parallel (BSPP), depending on the connection type. Because of these geometric differences, BSP and NPT threads are not interchangeable.

Can BSP and NPT fittings be used together?

BSP and NPT fittings should not be used together in permanent installations. Although they may partially engage in some cases, the differences in thread angle and thread form prevent them from creating a reliable seal. Mixing them can result in leakage or damaged threads.

How can I tell whether a fitting is BSP or NPT?

You can tell whether a fitting is BSP or NPT by measuring the thread angle. NPT threads measure 60°, while BSP threads measure 55°. A pitch gauge is required for accurate identification, as visual inspection alone is not reliable.

Do BSP threads require thread sealant?

Whether BSP threads require thread sealant depends on the type of BSP thread. BSPT threads require thread sealant to achieve a proper seal, while BSPP threads require a bonded seal ring rather than thread sealant.

Which thread type should I use for my valve or piping system?

The thread type you should use for your valve or piping system depends on geographic standards and system requirements. NPT is standard in the United States and Canada, while BSP is common in Europe and many international markets. Always verify compatibility before installation to ensure a proper seal and system performance.
